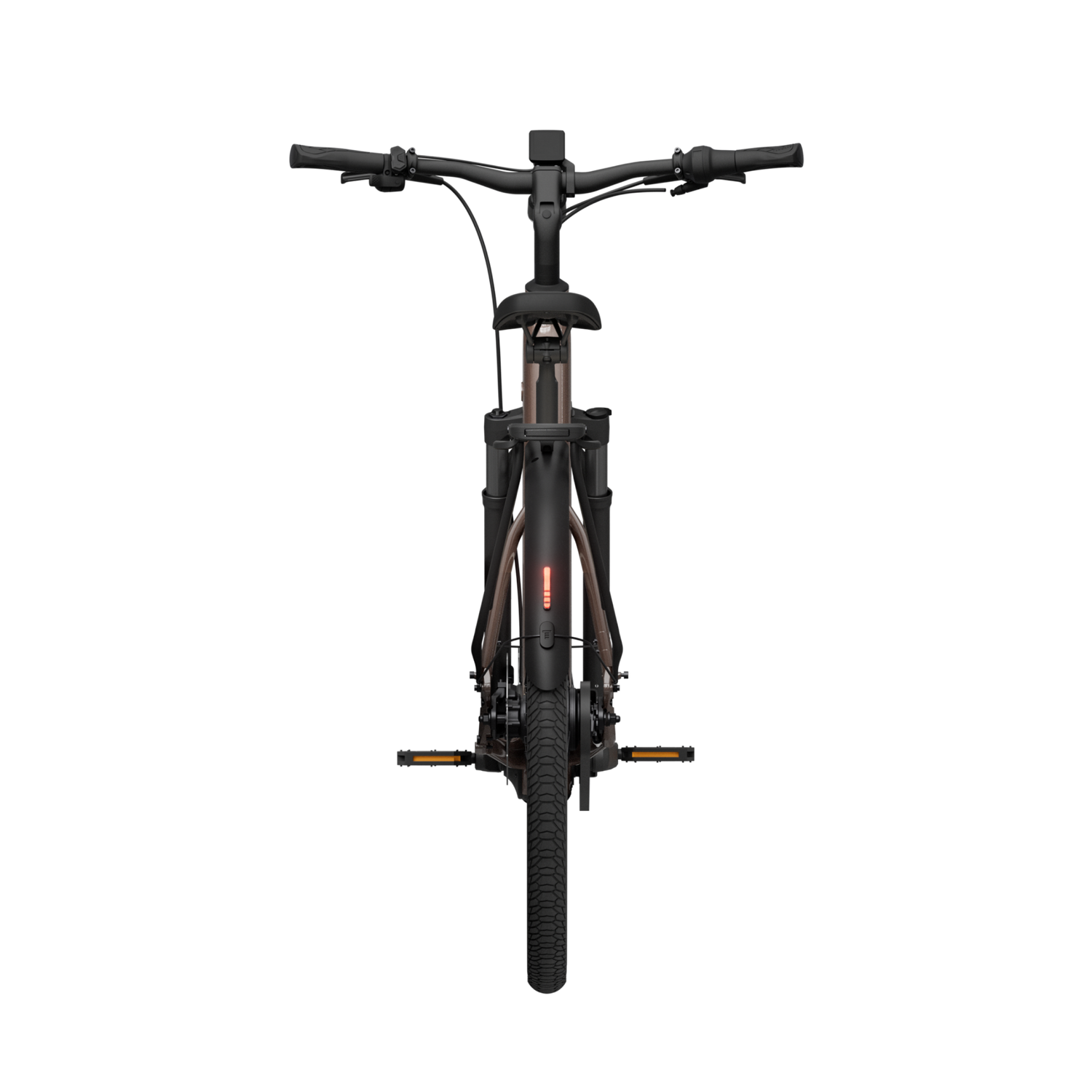

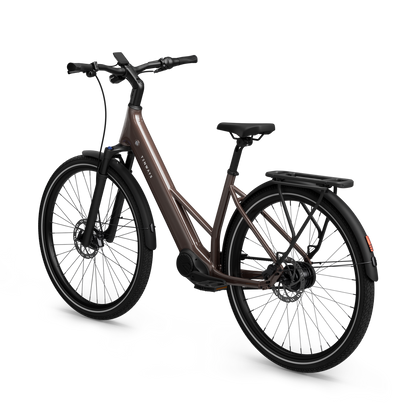

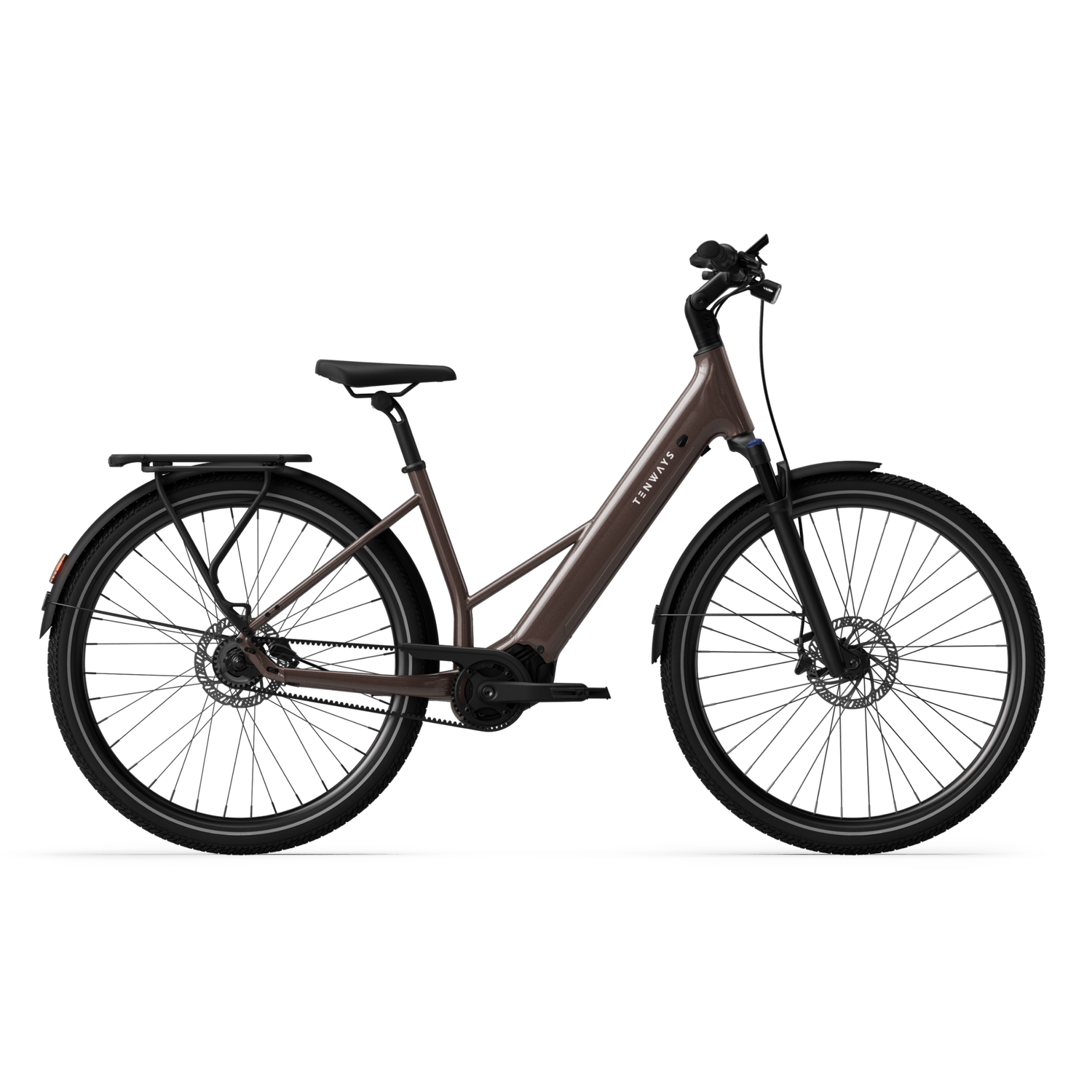

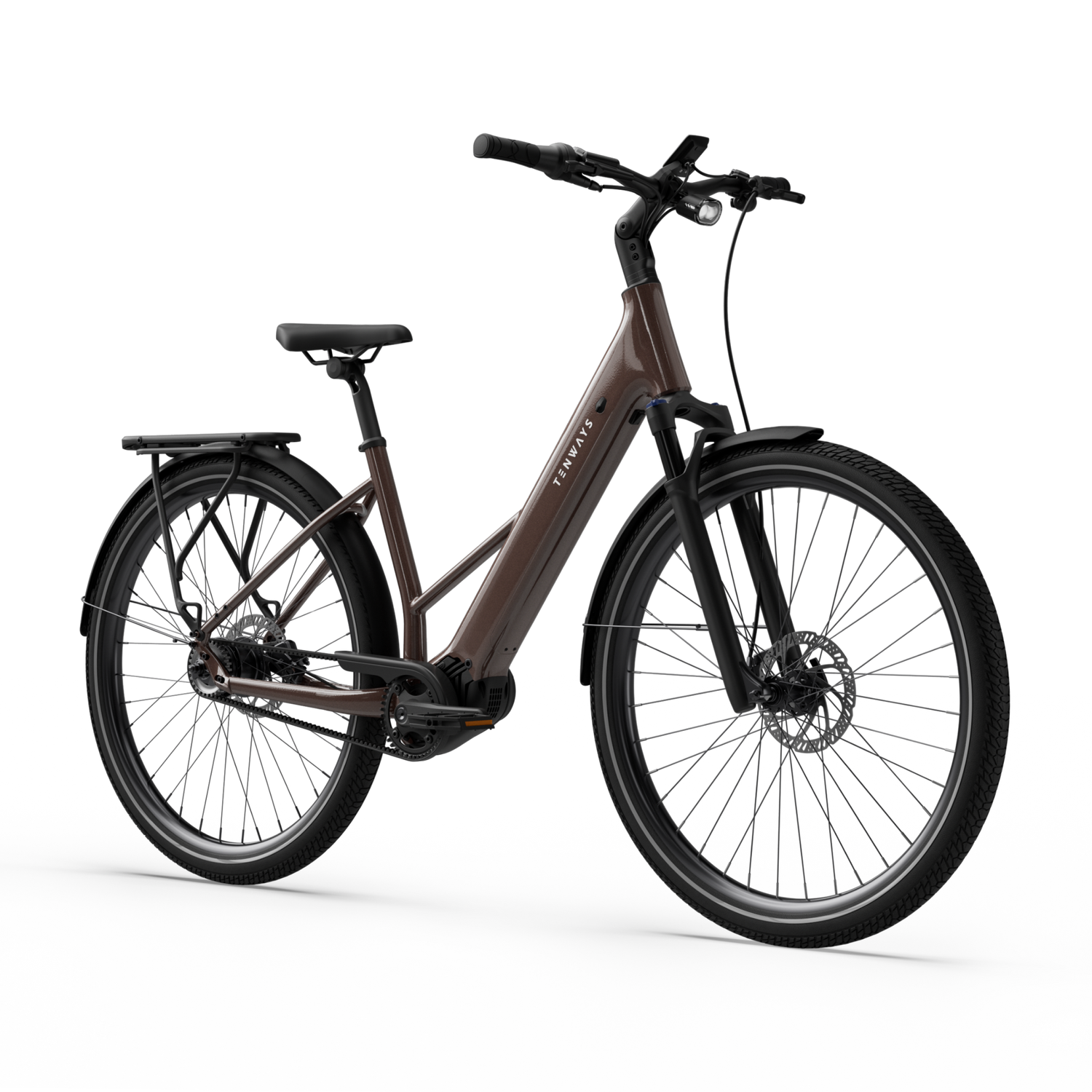

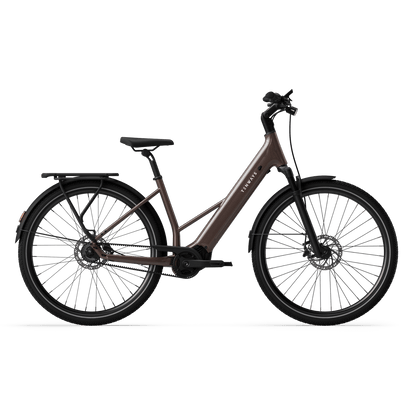

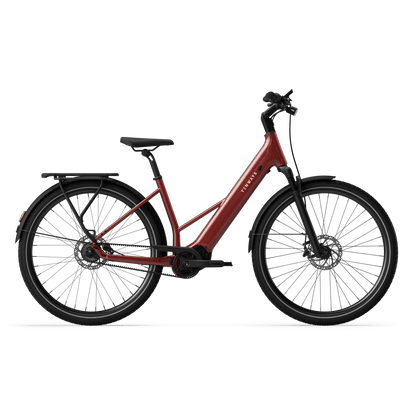

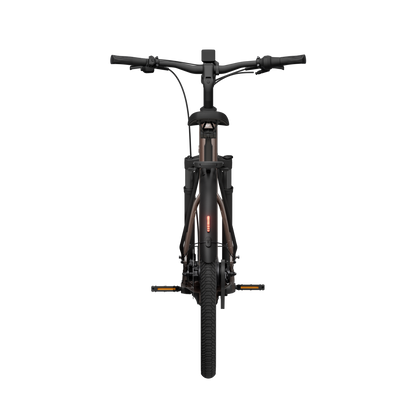

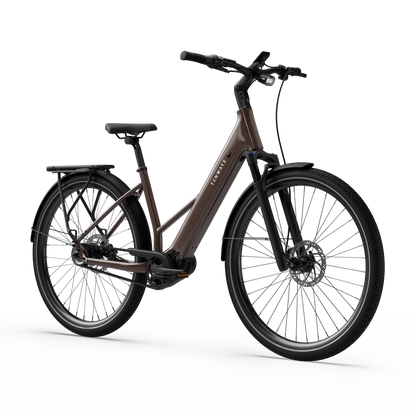

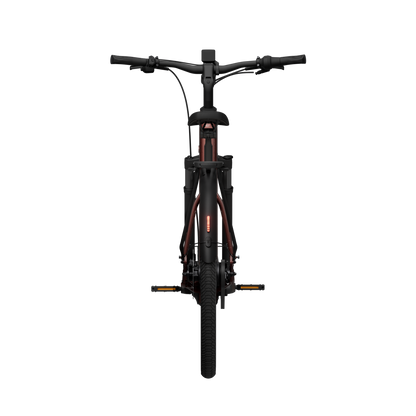

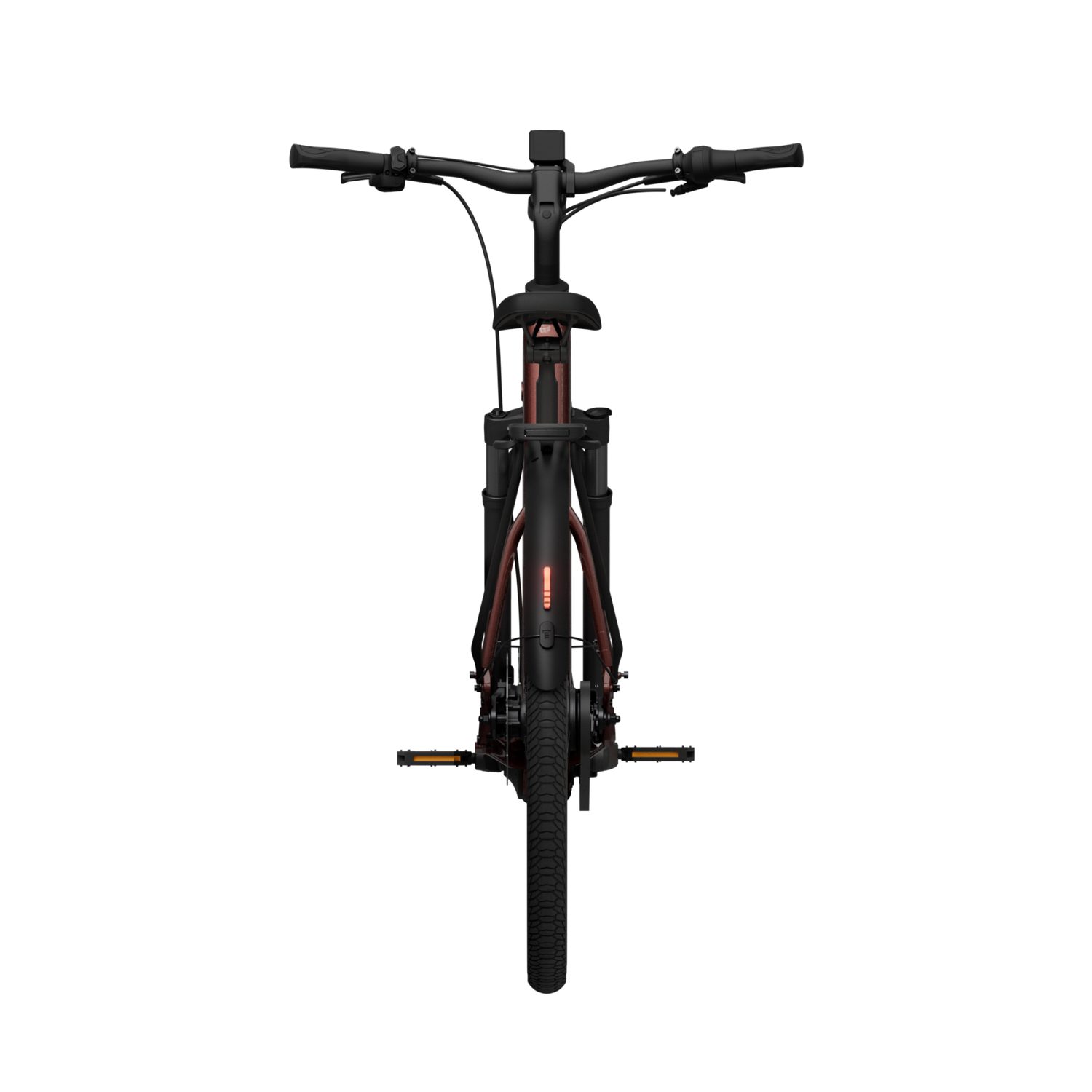

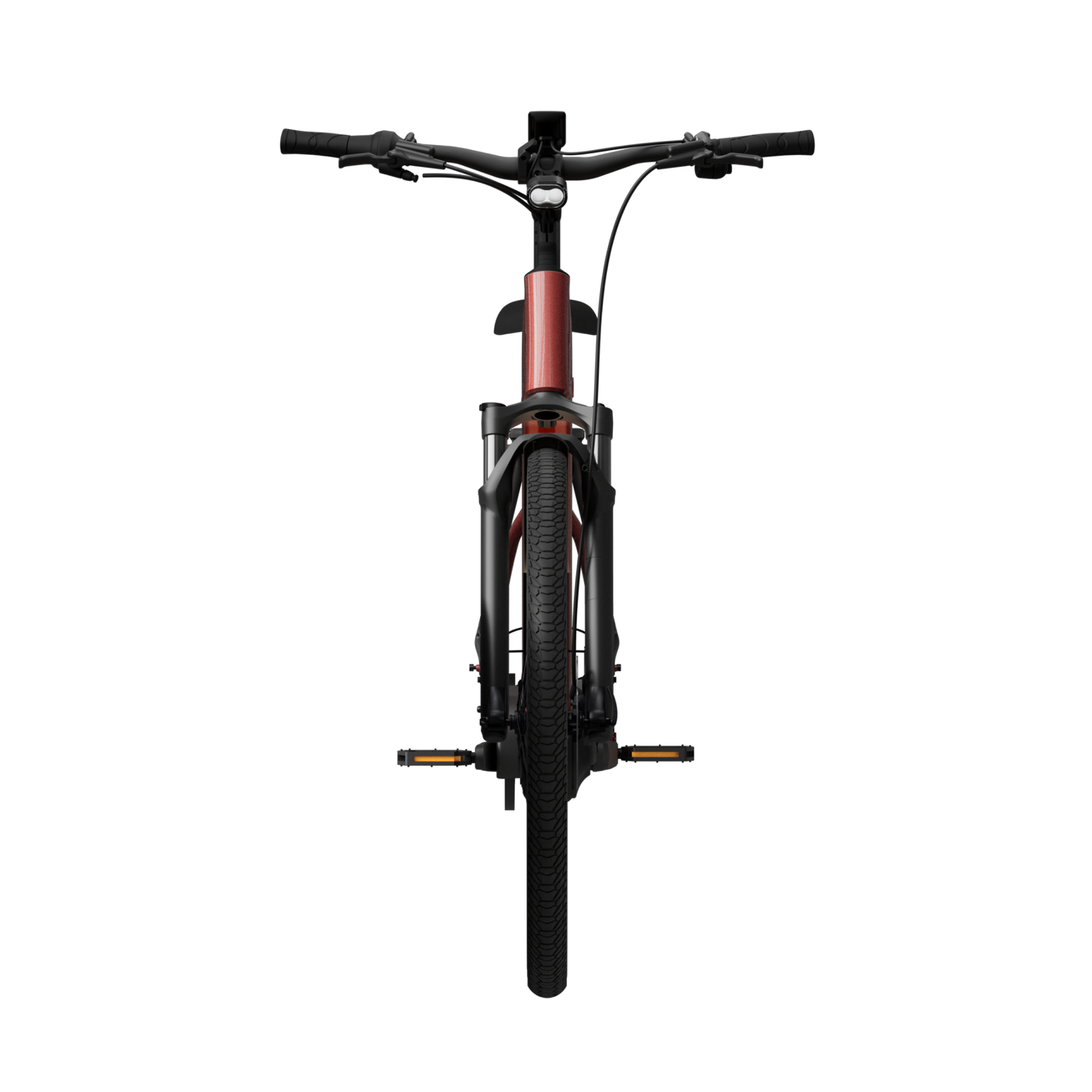

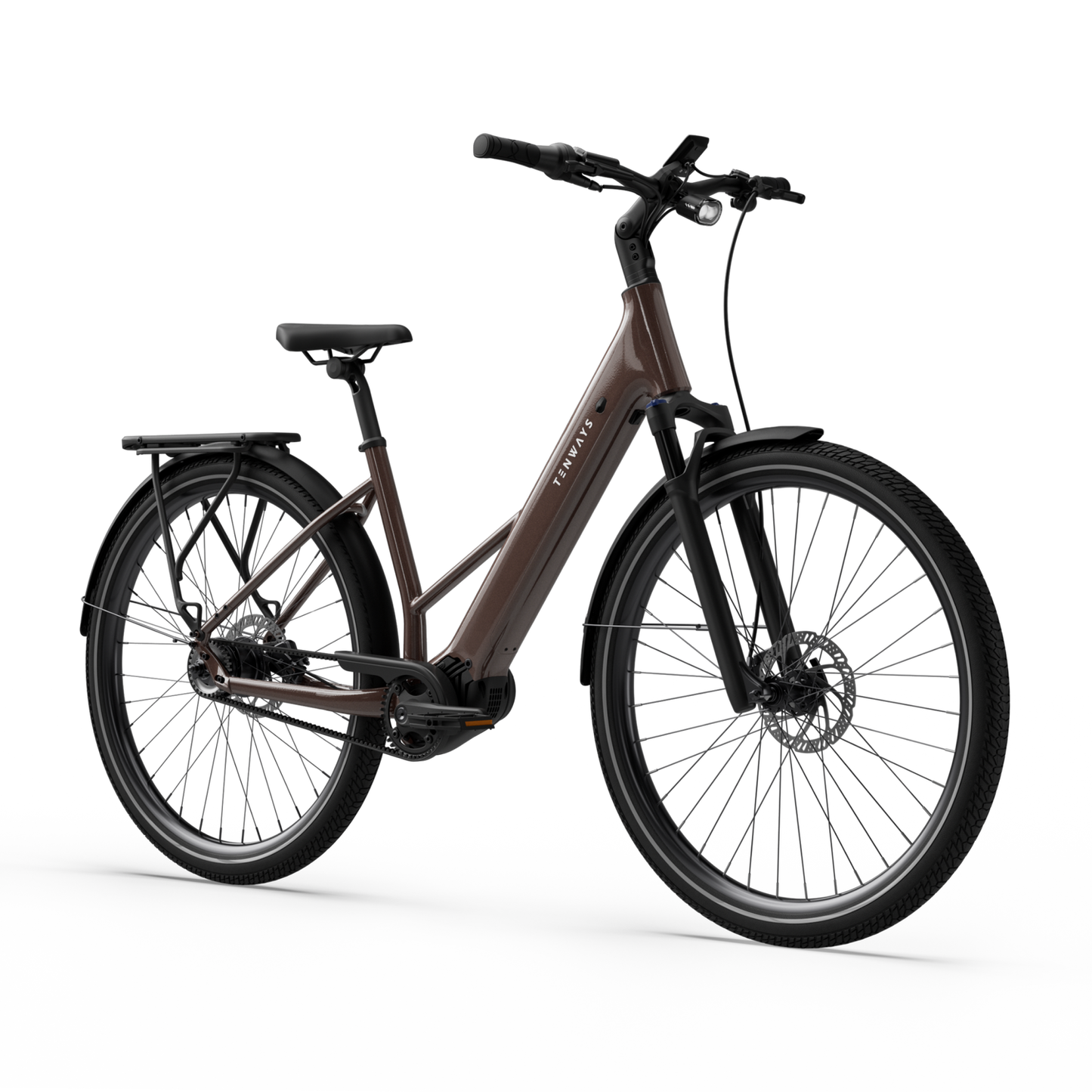

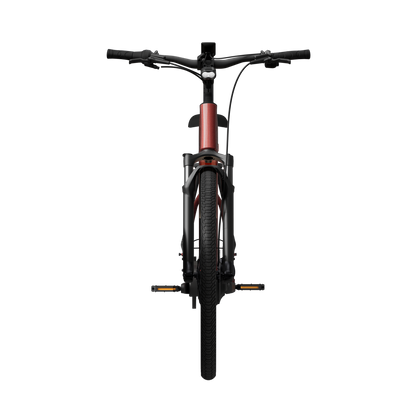

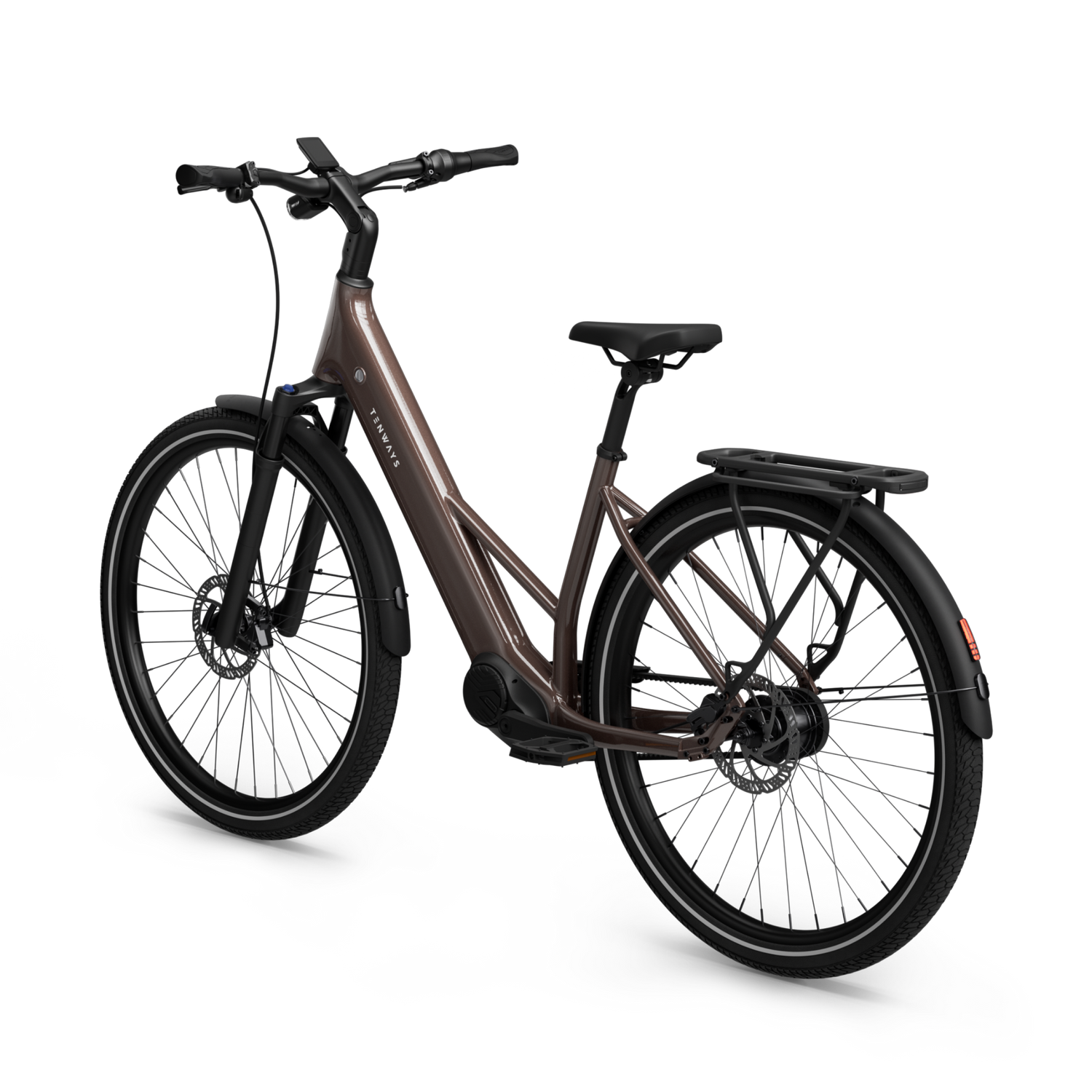

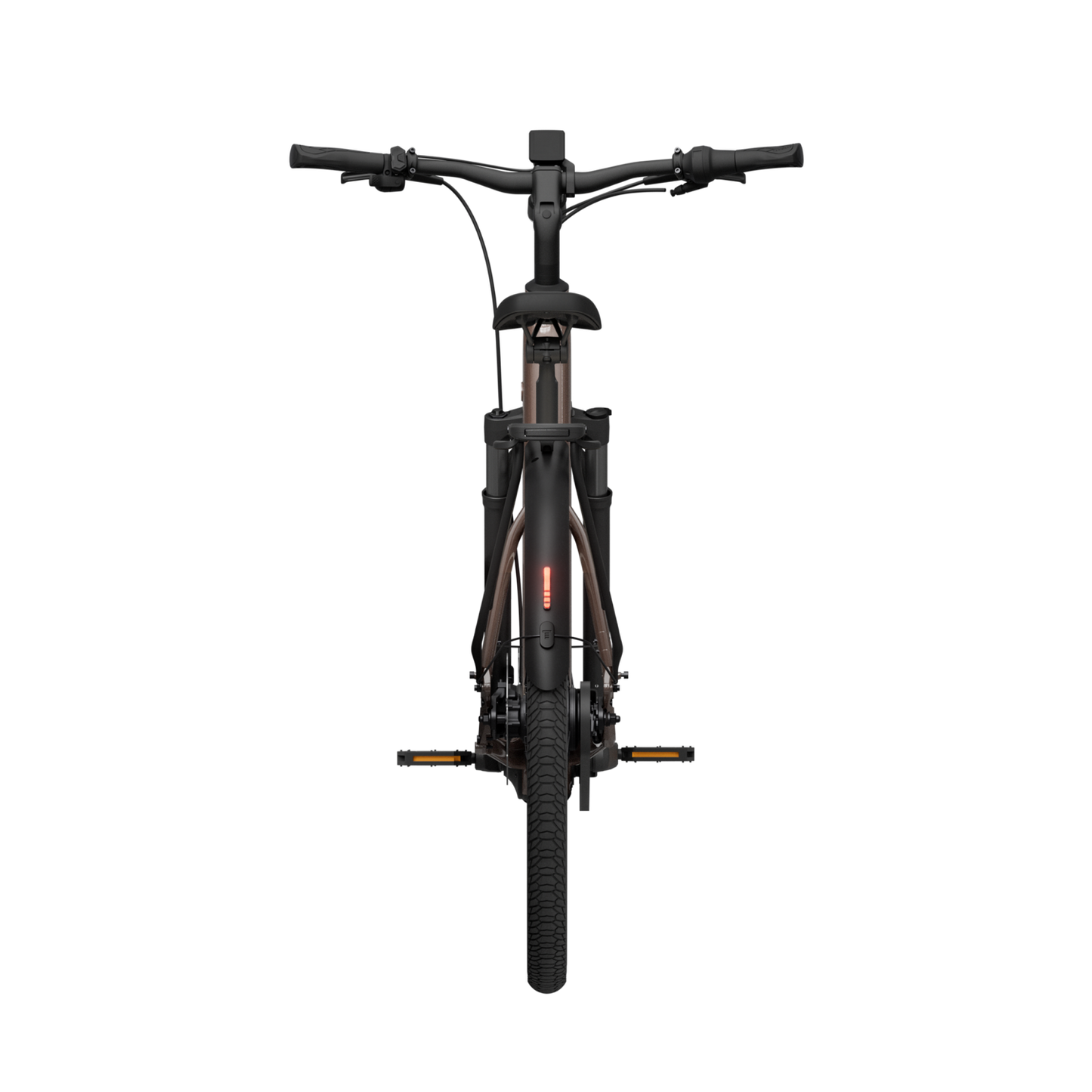

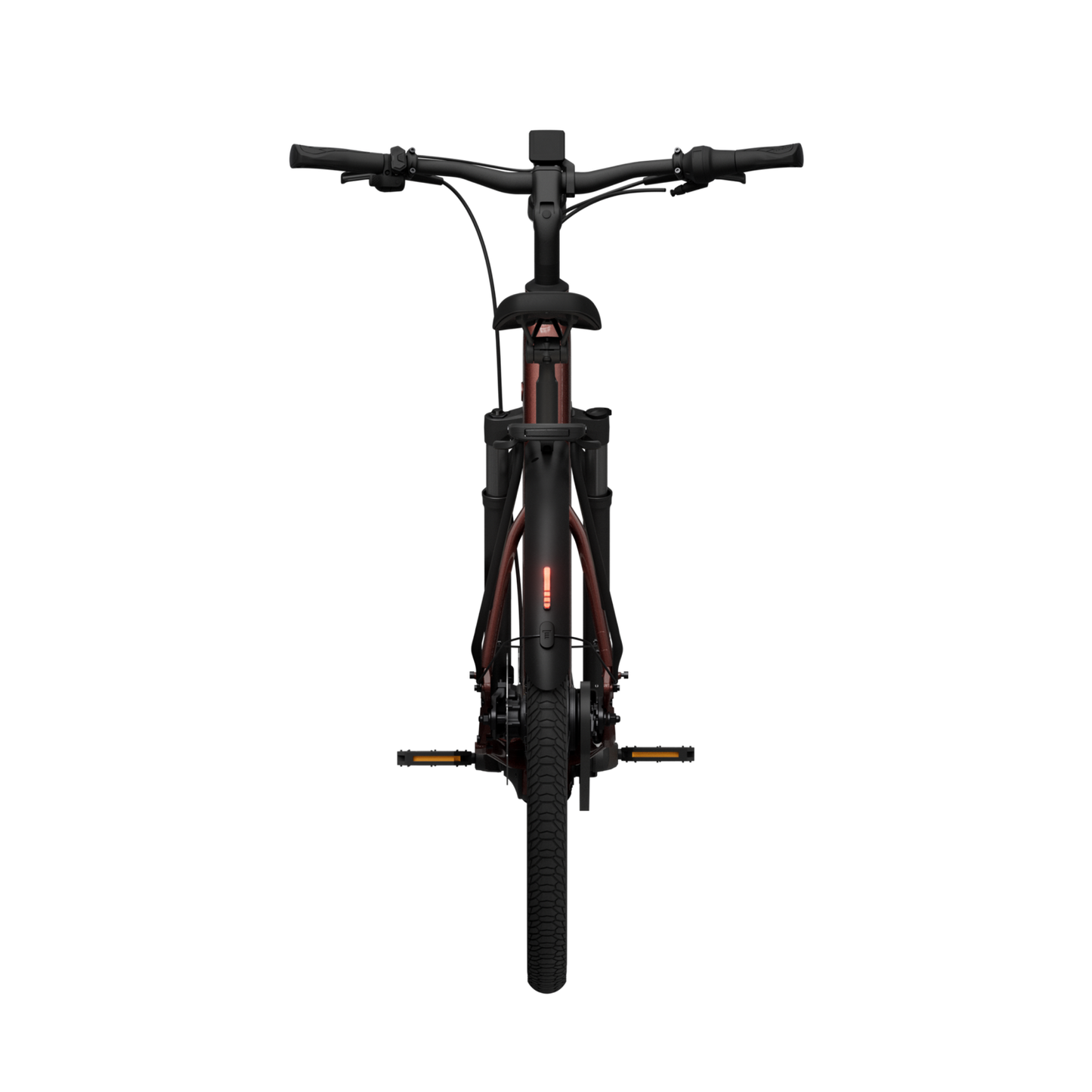

TENWAYS AGO AIR Belt Drive

The TENWAYS AGO AIR Belt Drive is the premium variant of the AGO AIR trekking platform — same 80 Nm mid-drive motor and 560 Wh battery as the standard AGO AIR, but paired with the Gates CDX carbon belt and Shimano Nexus 5-speed internal hub for silent, maintenance-free riding. Air suspension fork up front, 1.35 kg lighter overall.

Highlights

• 80 Nm TENWAYS mid-drive motor — confident power for climbs and loaded rides
• 560 Wh portable battery — up to 100 km range, removable for indoor charging
• Gates CDX carbon belt drive — silent, oil-free, virtually maintenance-free
• Shimano Nexus 5-speed internal hub — clean lines, no exposed derailleur, shifts at standstill
• Air suspension fork — tuneable preload, lighter than hydraulic equivalent
• Shimano hydraulic disc brakes — confident stopping in all weather
• KENDA 700×50C tires with reflective sidewalls
• Adjustable stem
• MIK rear carrier (up to 25 kg) included as standard
• Smart LCD display with navigation casting and dual Bluetooth/password unlock
• StVZO-compliant lighting
• 1.35 kg lighter than the Chain Drive version (23.5 kg net vs 24.85 kg)

Belt Drive vs Chain Drive

The Belt Drive is the premium variant of the AGO AIR. Same chassis, motor, and battery as the Chain Drive version — the differences are in the drivetrain and fork:

• Drivetrain — Gates CDX carbon belt + Shimano Nexus 5-speed internal hub (vs Shimano CUES 9-speed external chain on Chain Drive)
• Fork — air suspension with tuneable preload (vs hydraulic suspension on Chain Drive)
• Weight — 23.5 kg net (vs 24.85 kg)
• Maintenance — virtually zero on belt + internal hub; chain version requires periodic chain lubrication and derailleur adjustment
• Gearing — 5 internal gears (100–263% range) on Belt; 9 external gears on Chain

Electronic

• Motor: TENWAYS mid-drive (250 W rated, 80 Nm max torque)
• Sensor: integrated torque sensor
• Battery: 560 Wh (36 V, 15.6 Ah) lithium-ion, removable for indoor charging
• Display: DIGIWISE TFT colour LCD with navigation casting and dual Bluetooth / password unlock
• Lighting: StVZO-compliant front and rear
• App: TENWAYS app with live data dashboard, navigation, integrated help center

Performance

• Top speed: 25 km/h (motor assist limit)
• Range: up to 100 km (varies with terrain, weight, weather)
• Climbing: powerful mid-drive handles steep slopes

Components

• Frame: alloy
• Fork: air suspension
• Drivetrain: Shimano Nexus 5-speed internal hub + Gates CDX carbon belt
• Gear range: 100–263%
• Wheels: 700C alloy
• Tires: KENDA 700×50C, 60 TPI, reflective sidewalls
• Brakes: Shimano hydraulic disc
• Saddle: Selle Royal
• Stem: adjustable angle and height
• Crankset: alloy, 170 mm
• Carrier: MIK rear carrier, up to 25 kg
• Net weight: 23.5 kg (battery in, accessories out)
• Full weight: 26 kg (with included accessories)
• Permissible max gross weight: 145 kg

What's included

Ships with the MIK rear carrier and StVZO-compliant front and rear lights as standard. Mudguards, kickstand, and an additional rear carrier are available free with a TENWAYS newsletter subscription (worth €177).
