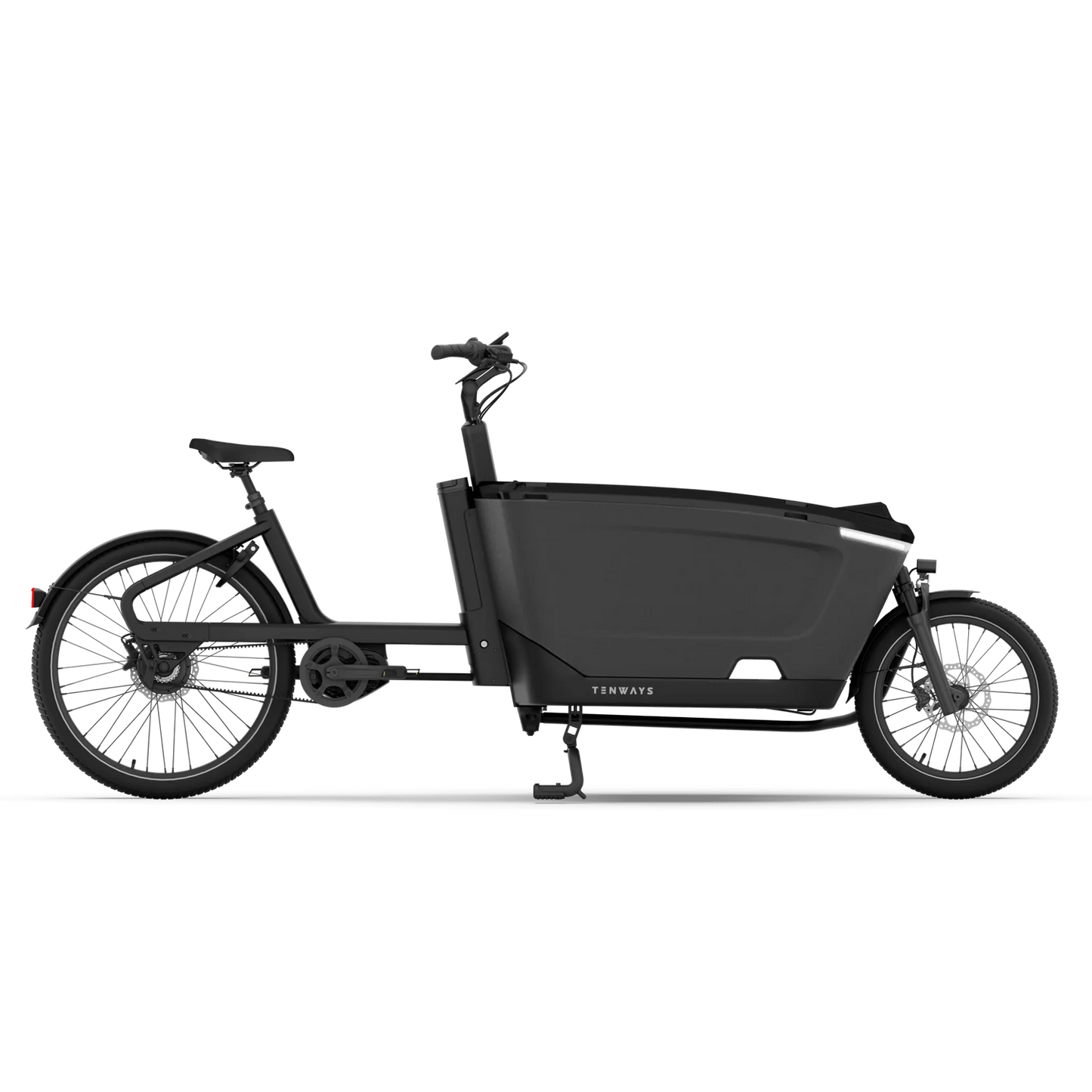

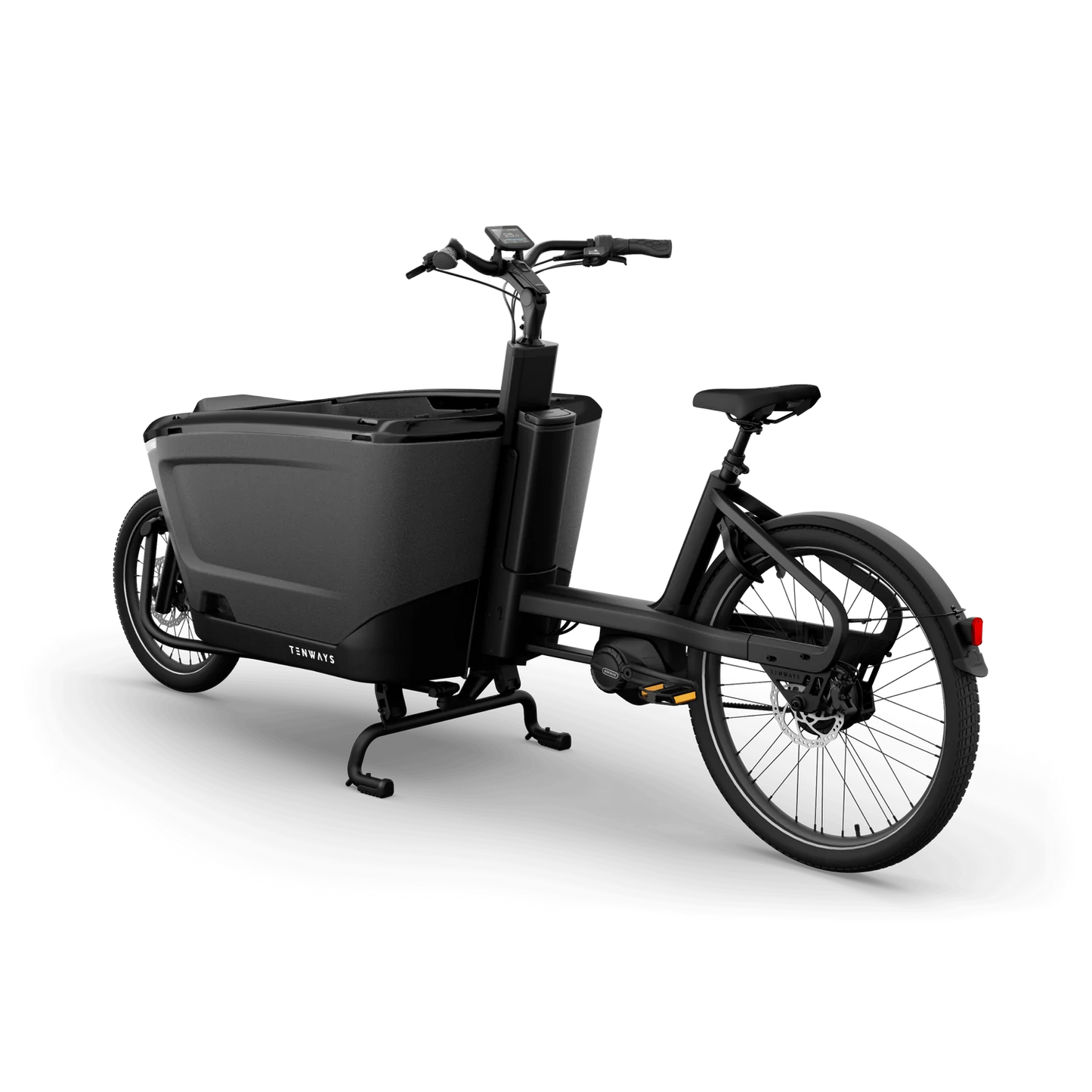

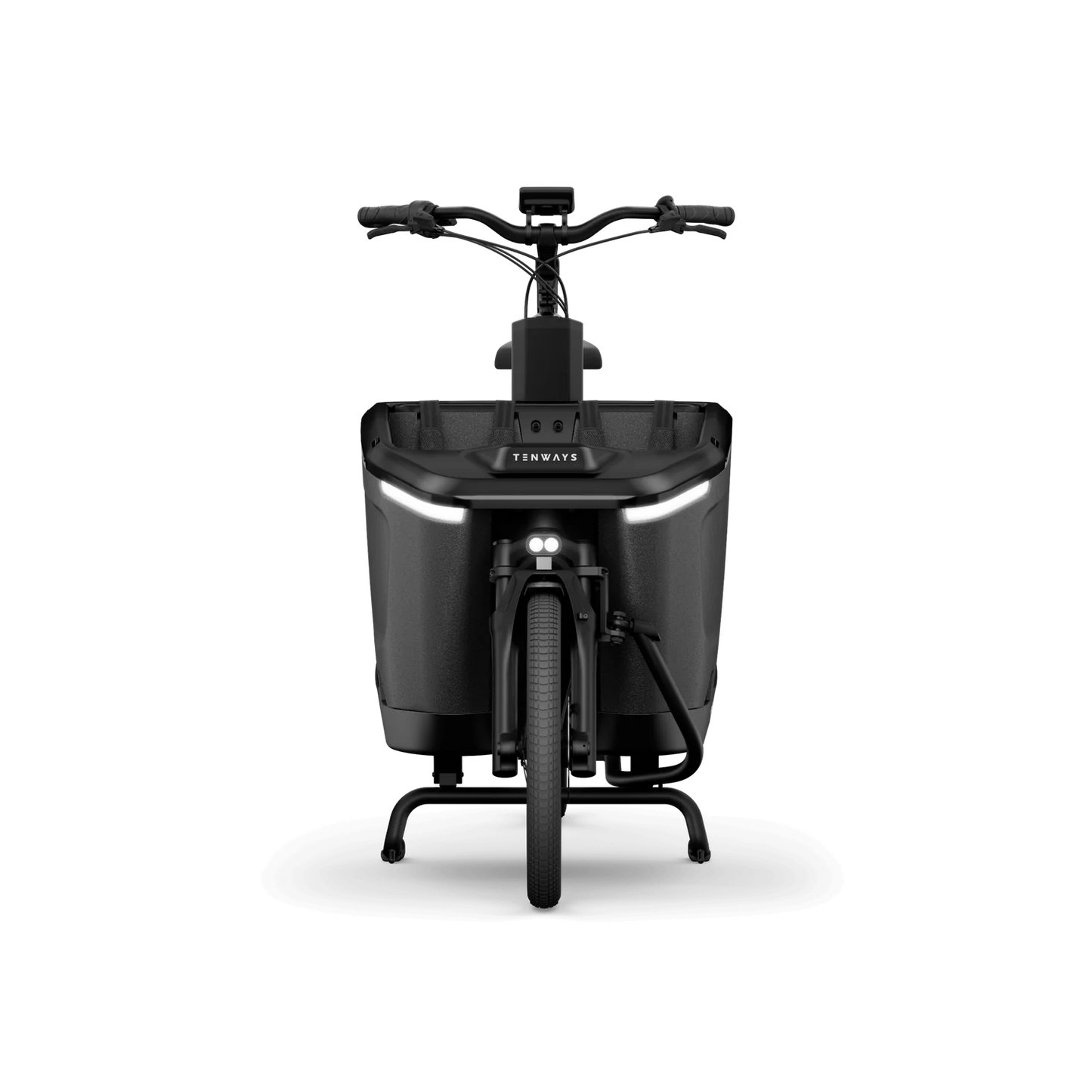

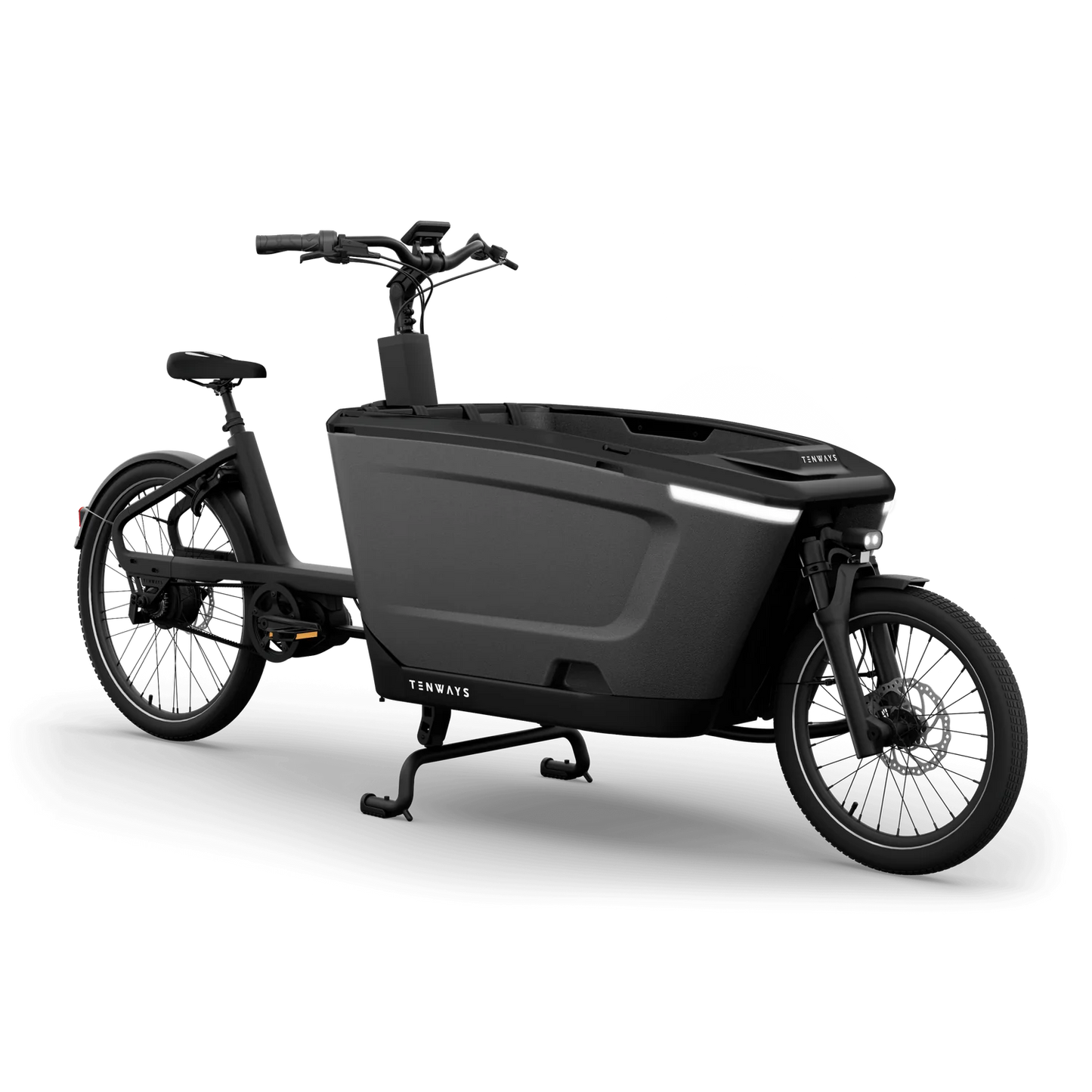

TENWAYS CARGO ONE

The TENWAYS Cargo One is the flagship of the lineup — a front-loading family cargo bike with a 180-litre child-rated cargo box, 100 Nm Bafang M600 mid-drive motor, and 960 Wh battery for up to 90 km of range. Engineered to carry two children, the groceries, and whatever else the school run throws at you, in one go.

Highlights

• 100 Nm Bafang M600 Cargo mid-drive motor — heavy-duty power for fully-loaded hills
• 960 Wh portable LG-cell battery — up to 90 km range, built-in lock for added security
• 180-litre cargo box with two sets of 5-point safety belts — child-rated and biodegradable
• Removable cargo box (4 bolts) — exposes a sturdy platform for larger parcels
• Tool-free child seat removal — switch from kid-carrier to cargo hauler in seconds
• Gates CDX carbon belt drive — quiet, maintenance-free, no oily chain
• Enviolo stepless shifting hub — gear shifts even at a standstill, always in the right gear
• Tektro 4-piston hydraulic disc brakes — confident stopping with a full load
• SR SUNTOUR suspension fork — 50 mm travel, smooths city potholes for front passengers
• EV-style sidelights with automatic ambient lighting and turn signals (where local rules permit)
• Two-point adjustable stem — 0–90° angle, 0–100 mm height; one bike fits the whole family
• Fully assembled on delivery — ride home from the shop

What's included

• 180-litre cargo box with two sets of 5-point safety belts
• Standard black cargo box cover
• Extra green cover for variety
• Customised bell, Royalgel-cushioned saddle, two-point adjustable stem

Note: a frame lock is not included and is sold separately.

Electronic

• Motor: Bafang M600 Cargo mid-drive (250 W rated, 100 Nm max torque)
• Battery: 960 Wh (48 V, 20 Ah) lithium-ion with LG cells, removable with built-in lock
• Display: TFT colour LCD with navigation casting from the TENWAYS app
• Sensor: integrated torque sensor
• Lighting: StVZO-compliant, EV-style sidelights, automatic ambient, integrated turn signals

Performance

• Top speed: 25 km/h (motor assist limit)
• Range: up to 90 km (empty cargo box; varies with load, terrain, weather)
• Climbing: heavy-duty mid-drive handles fully-loaded slopes

Components

• Frame: 6061 aluminium, step-through
• Front fork: SR SUNTOUR suspension, 50 mm travel
• Drivetrain: Enviolo stepless rear hub + Gates CDX carbon belt
• Wheels: 20″ front / 26″ rear aluminium rims
• Tires: Schwalbe Big Ben 20″×2.15 / 26″×2.15 puncture-proof
• Brakes: Tektro 4-piston hydraulic disc
• Saddle: Selle Royal with Royalgel cushioning
• Stem: two-point adjustable (0–90° angle, 0–100 mm height)
• Net weight: 56 kg (battery in, accessories out)
• Permissible max gross weight: 250 kg
• Cargo box load: up to 60 kg

Dimensions

• Bike (L × H × W): 2656 × 1305 × 686 mm
• Cargo box (L × H × W): 1126 × 547 × 563 mm
• Child seat (L × H × W): 532 × 284 × 247 mm
